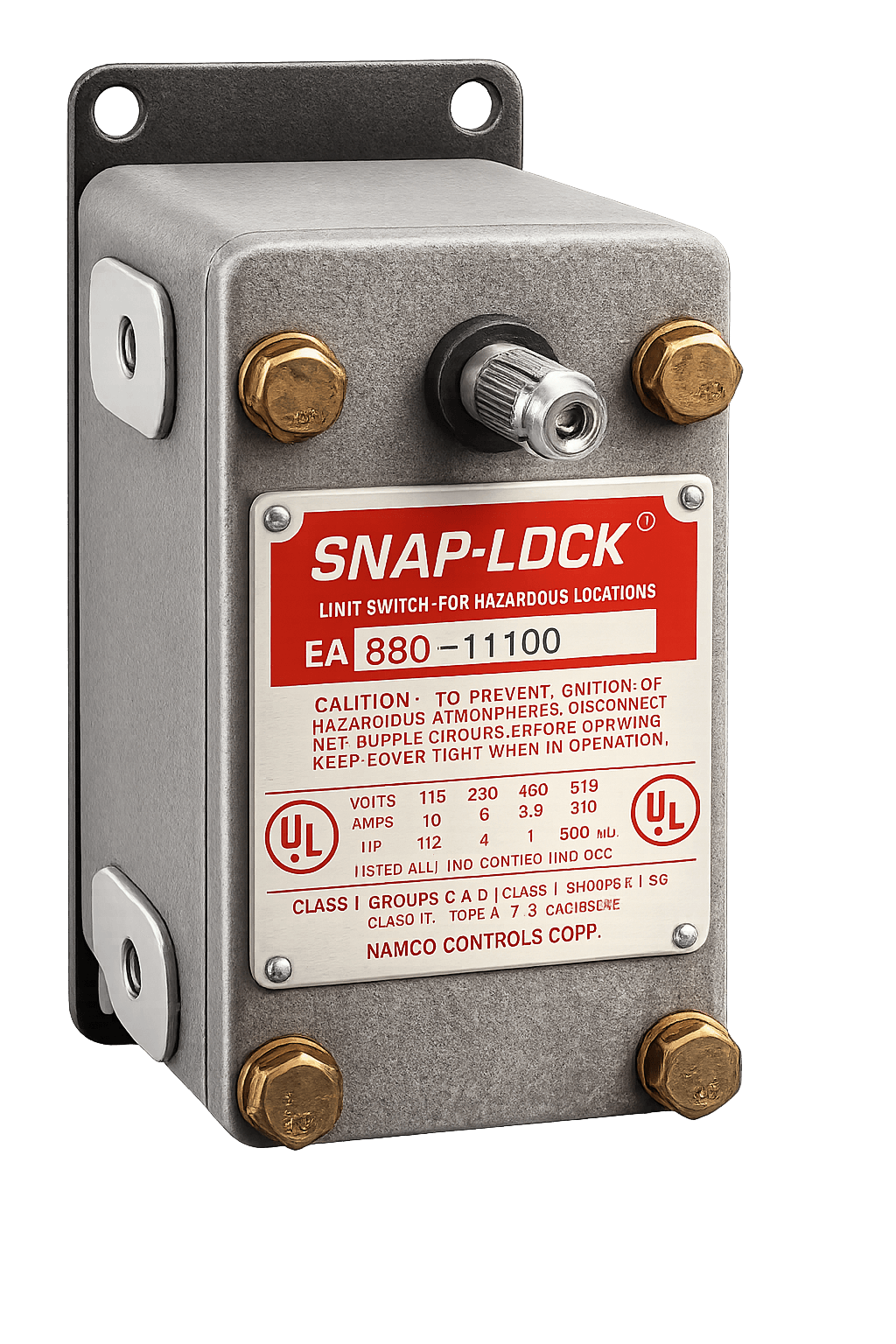

EA880 Series — Hazardous Location
Designed for hazardous locations with snap-lock technology, the EA880 offers multiple mounting, rotation and enclosure options.
Reliable, rugged limit switch for hazardous installations
- 1NO/1NC & 2NO — Multiple contact arrangements available.
- Quick Make, Quick Break — Single Pole, Double Throw (SPDT) with four terminals.
- Rocker-Type SNAP-LOCK® — Reliable snap-lock actuation for heavy duty use.
- Spark-proof Aluminum — Spark-proof aluminum housing for hazardous locations.
- Rugged Construction — Built to withstand harsh industrial environments.
- Heavy Duty Contacts — Butt contact arrangements for long life and durability.
Technical Data
Meets NEMA
1, 4, 7, 9 & 13 — watertight, oil & dust tight
Temperature Range
-20°C to +90°C
Lever Adjustment
Adjustable by 7°30' increments through 360°
Wiring Space
Ample for four No. 12 AWG conductors
Contact Arrangement
Form "Z"
Options
Precious metal contacts; High/Low temperature components and lubricants
Weight
Approx. 4.4 lbs.
Continuous Current Rating - Amperes

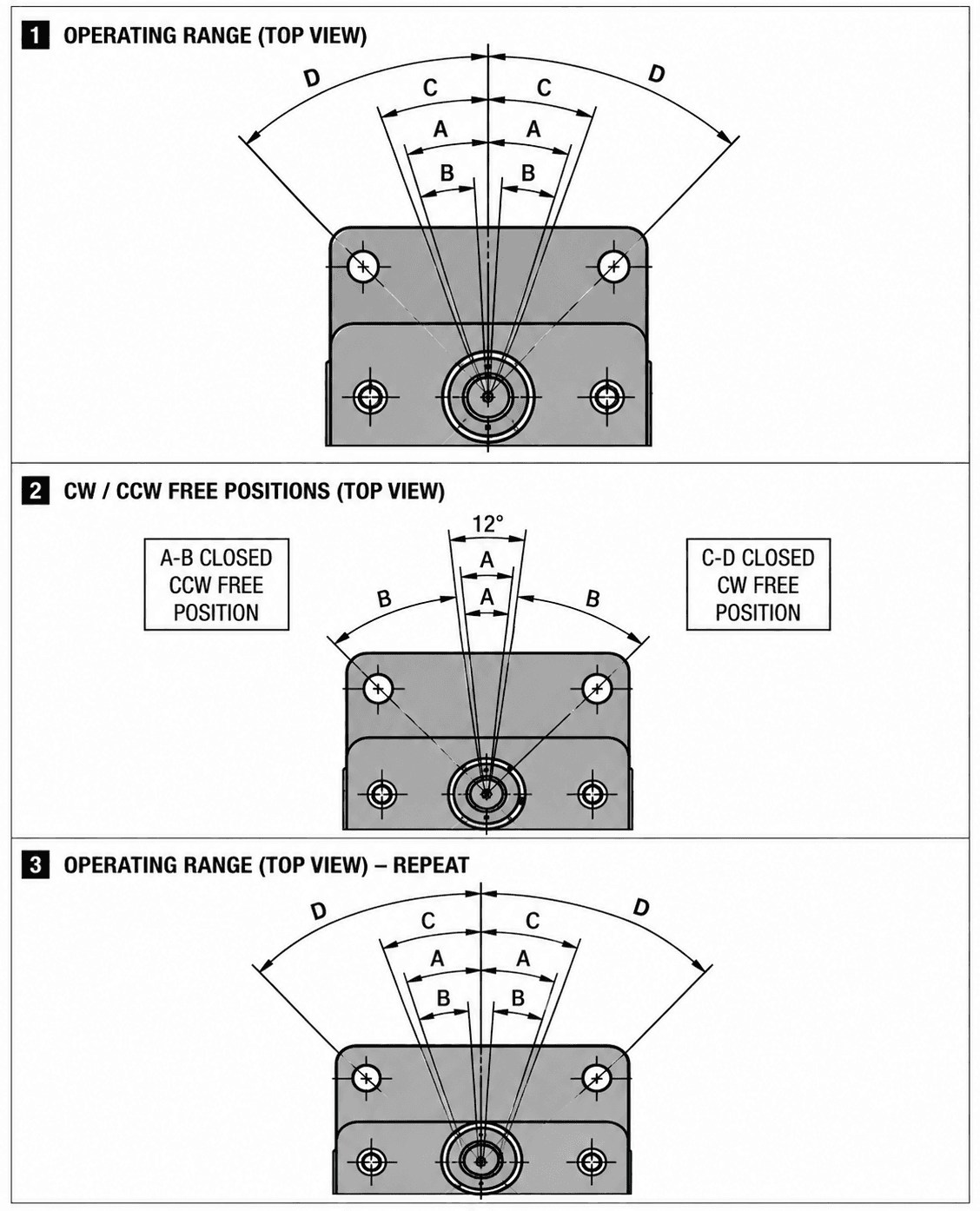

Operational Data
- Pre-Trip Travel (Standard Travel - CW & CCW): 10°
- Movement Differential (Standard): 8°
- Recommended Travel (Standard): 13°
- Total Travel (Standard): 38°

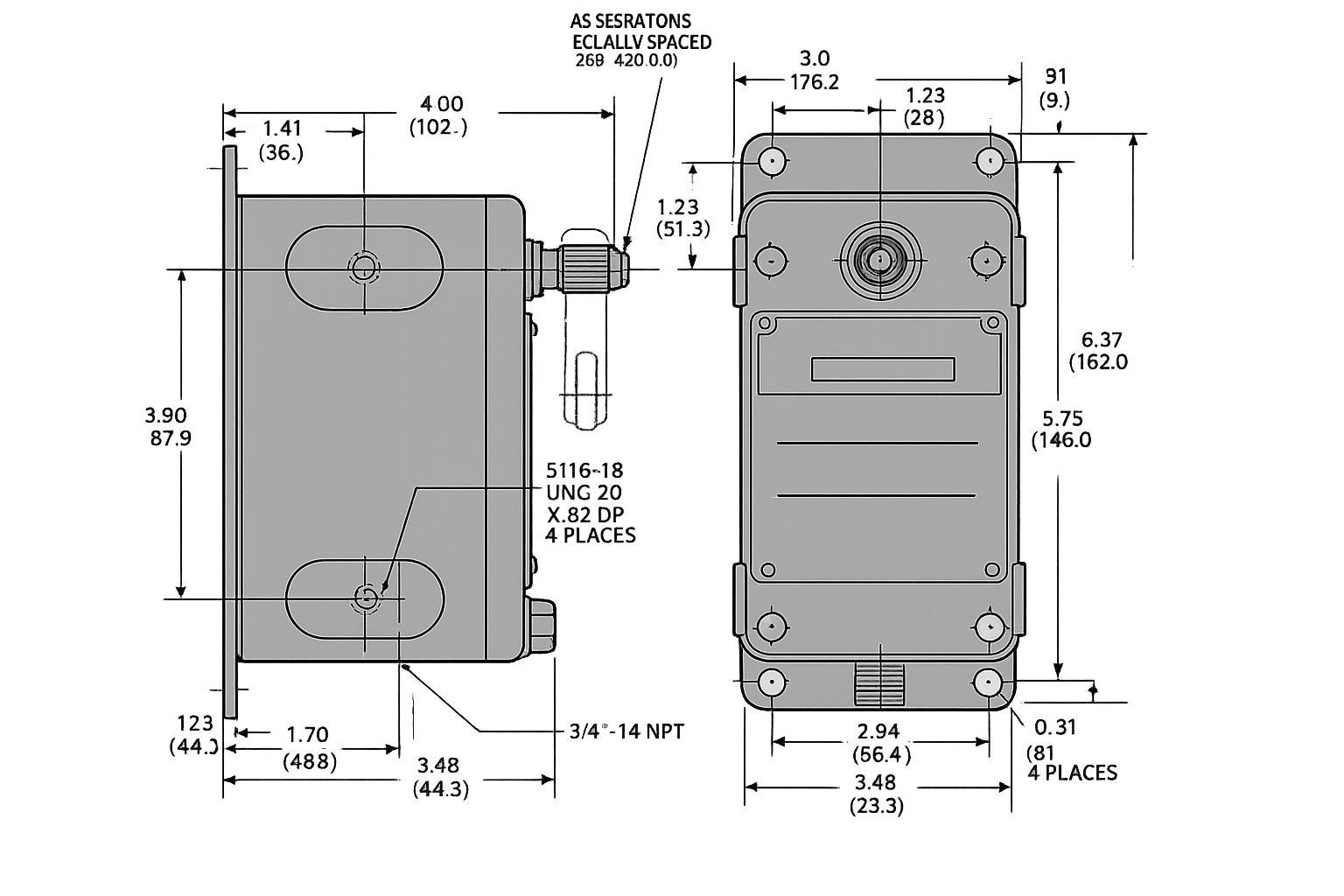

Dimensions & Mounting
How To Order
Simple EA880 ordering structure for reliable switch selection.
Use the EA880 order code to select enclosure material and operation mode. The product variation code defines the contact arrangement for 1NO/1NC, 2NO/2NC, or 3NO/3NC.
For maintained and neutral position EA880 series, consult factory.
EA880 Series Highlights
- Flexible cam selection for CW/CCW and neutral actions.
- Spark-proof enclosures for hazardous installations.
- Robust contact reliability with silver alloy construction.
- Quick maintenance access and generous wiring clearances.
