Heavy Duty Limit Switches
Built for precise industrial control

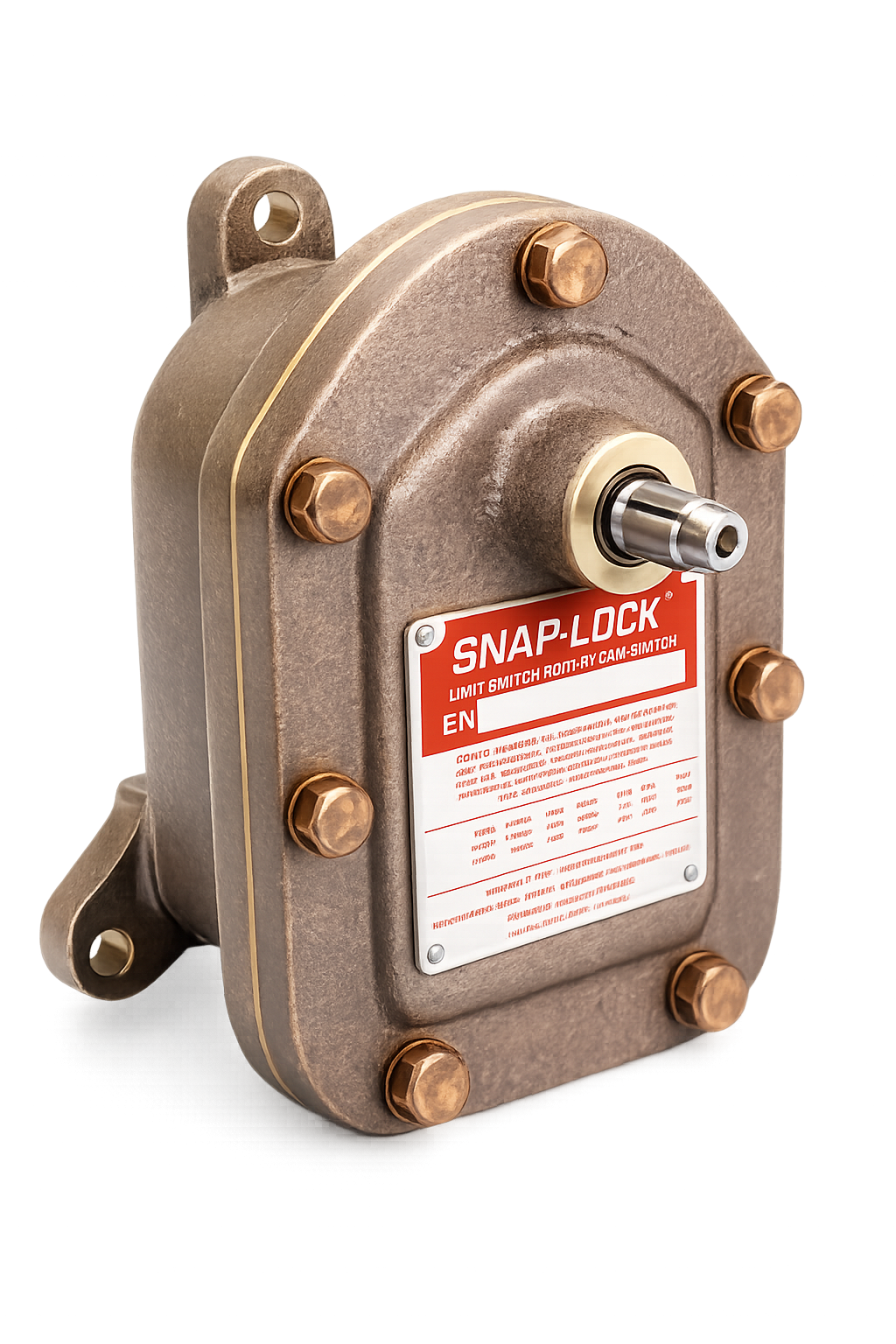

The EA800 series delivers rugged snap-lock switching for harsh environments, offering neutral position and maintained position cam options with bronze or aluminum enclosures and a wide range of certification-ready features.
High-performance limit switch technology, engineered for reliable industrial use.
Designed to withstand hazardous locations and heavy duty applications, the EA800 series uses cam-type SNAP-LOCK® technology for dependable contact action, flexible lever motion, and compact installation.
Standard EA800 switches are supplied with the combination B1/B2 cam, supporting CW and CCW action with both single action and double action modes.
The neutral position cam is ideal for applications that require the lever and cam to return to a defined resting state after operation. Maintained position cams are available for stable contact hold in one or both directions.
A cleaner spec layout for fast reading and better alignment.
The technical data, operational details, and dimensional information are now grouped into one aligned composition with placeholder diagrams for the image areas.
Core benefits, ratings, and data in one aligned panel
This area keeps the main specifications together while the supporting sections sit to the right, creating a cleaner and more balanced product layout.
Snap-Lock® Cam Performance
Quick make, quick break actuation delivers repeatable switching with minimal contact bounce.
Hazardous Location Ready
NEMA Type 4, 4X, 6, 6P, 7 (Class I, Groups C & D) and 9 (Class II, Groups E, F & G) enclosure ratings.
Flexible Motion
CW and CCW operation with neutral position or maintained position cams for precise control.
Field-Service Friendly
Generous wiring space for size 12 wire and reliable silver alloy contacts with locked shifting mechanism.
Temperature Resilience
Standard range from -20°C to +90°C, with high and low temperature component options available.
Dual Enclosure Materials
Choose bronze or aluminum housings with spark-proof construction to match application requirements.
Current by voltage
Operating details
- Contact Arrangements
- 1NO/1NC, 2NO/2NC, 3NO/3NC
- Rated Temperature
- -20°C to +90°C (standard)
- High Temperature Option
- 0°C to +150°C components and lubricants
- Low Temperature Option
- -40°C to +90°C components and lubricants
- Operating Torque
- 15 to 35 lb-in (trip torque varies by contact arrangement)
- Contact Style
- Silver alloy contacts, latched shifting mechanism
- Neutral Position
- Spring return to starting position for both lever and cam
- Form
- Form Z contact arrangement
Trip travel and torque

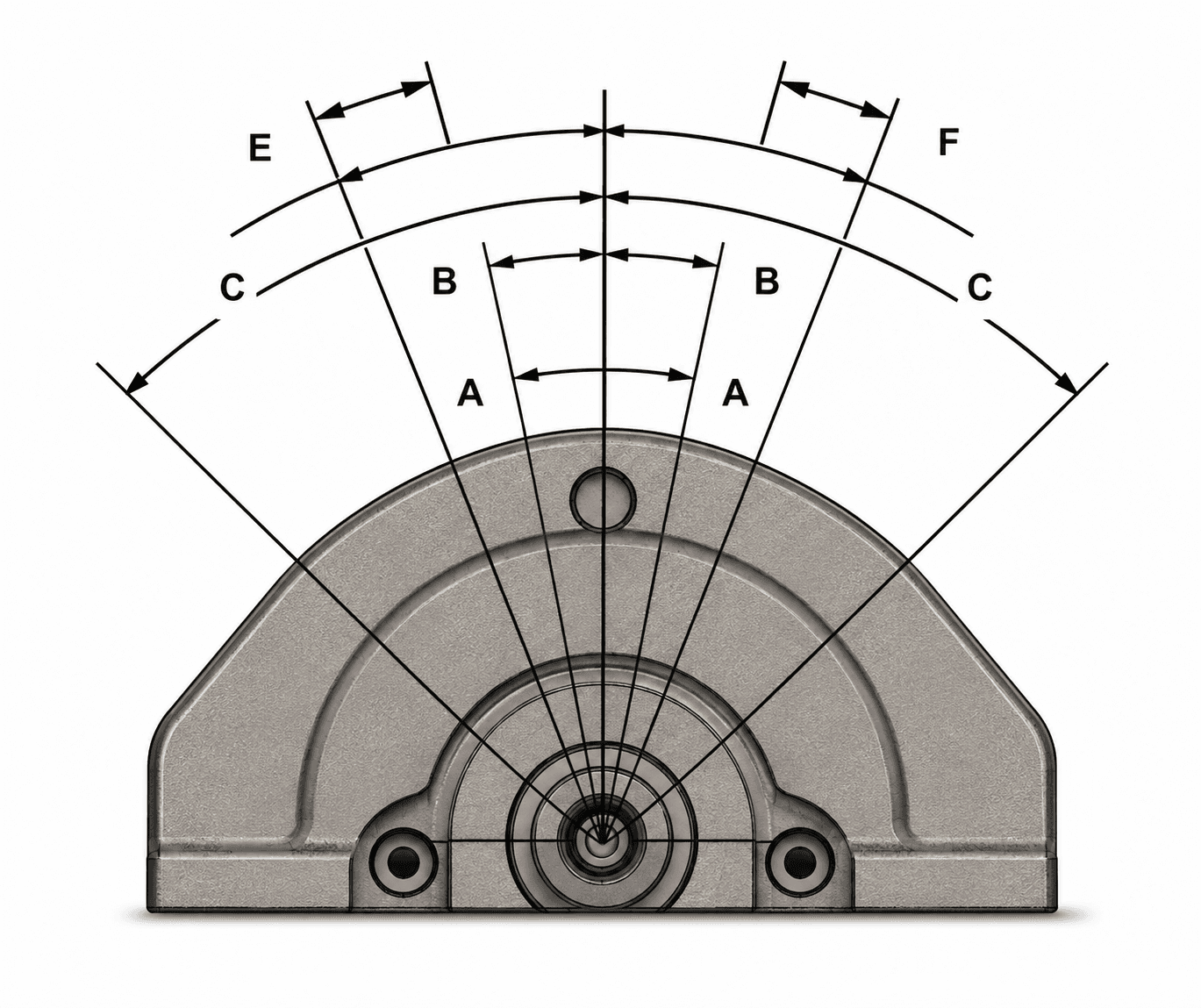

Operational Diagram
Trip travel and torque
Trip Travel
18°
Reset Travel
14°
Recommended Travel
30°
Maximum Travel
90°
Torque 1NO/1NC
15 lb-in
Torque 2NO/2NC
27 lb-in
Torque 3NO/3NC
33 lb-in
Compact dimensions, clear mounting guidance

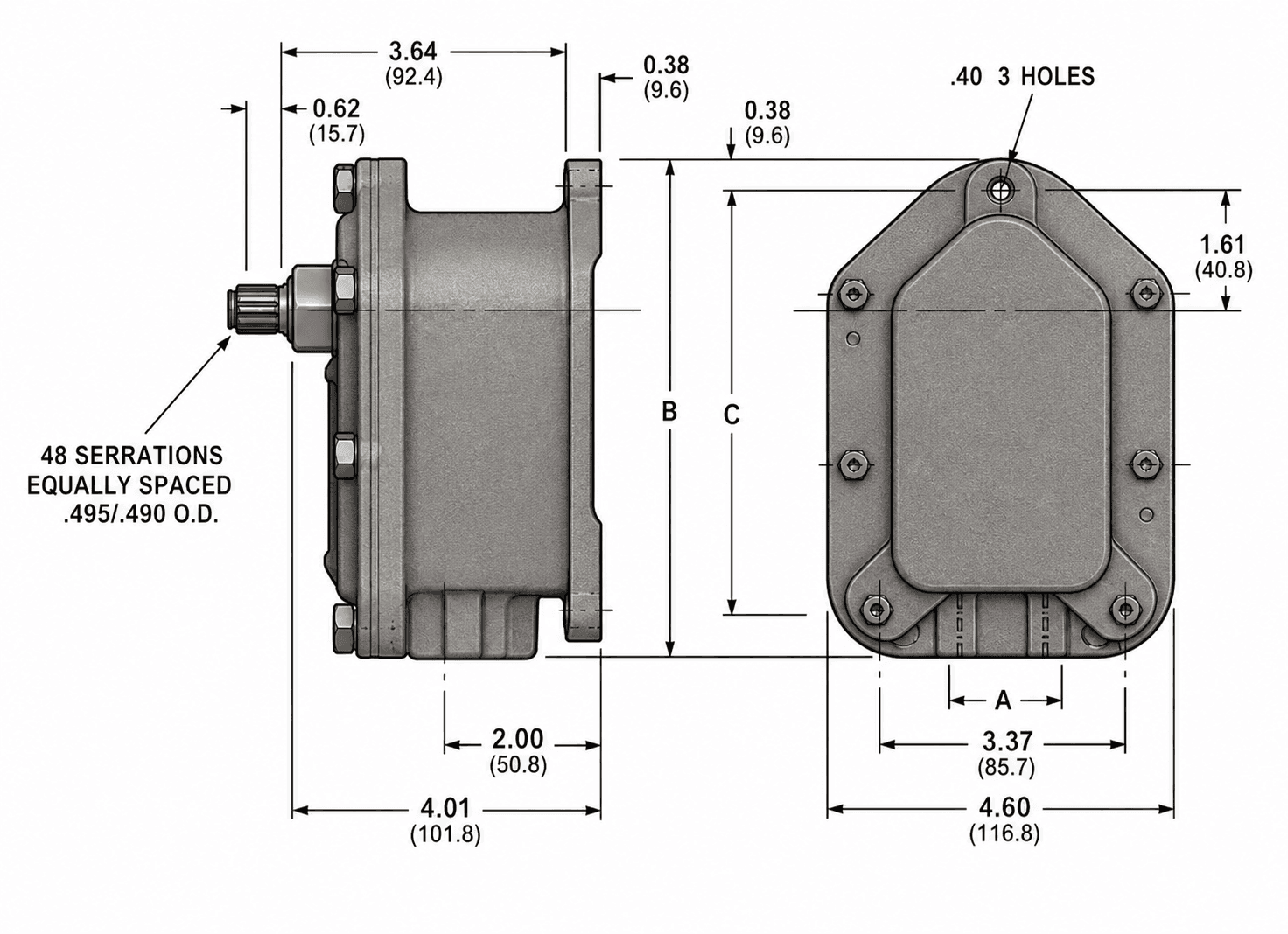

Mounting Drawing
Dimensions and mounting
Simple EA800 ordering structure for reliable switch selection.
Use the EA800 order code to select enclosure material and operation mode. The product variation code defines the contact arrangement for 1NO/1NC, 2NO/2NC, or 3NO/3NC.
Operation Code
0 = CW only or CW & CCW, 1 = CCW only, 1 = CW and CCW (depending on assembly).
Enclosure Code
4 = Bronze, 5 = Aluminum.
Contact Type
1 = 1NO/1NC, 2 = 2NO/2NC, 3 = 3NO/3NC.
For Maintained and Neutral Position EA800 Series, consult factory.
EA800 Series Highlights
- • Flexible cam selection for CW/CCW and neutral actions.
- • Spark-proof enclosures for hazardous installations.
- • Robust contact reliability with silver alloy construction.
- • Quick maintenance access and generous wiring clearances.
