Snap-Lock® Standard Heavy Duty Precision.

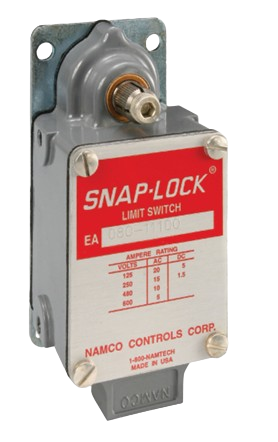

Compact and rugged limit switch with Rocker Type technology. Designed for severe industrial machine tools and high-load conveyor systems.
Rugged Locking,
For Severe Operations.
The EA080 series is built to handle the highest mechanical stresses in manufacturing, where standard switches fail due to fatigue.
Mechanical Fatigue
Standard duty switches lose their snap-action locking over millions of cycles.
Torque Instability
Inconsistent operating torque leads to unpredictable trips in heavy-load material handling.
Structural Stress
High-impact industrial environments crack plastic housings and loosen standard mounting.
Oil/Water Ingress
Cutting fluids and industrial coolants can bypass standard seals and short out internals.
Ordering Structure
| Config Field | Available Options |
|---|---|
| Product Variation | 1: Standard, 2: Epoxy Sealed, 3: Extreme Env, 6: Connector |
| Switch Position | 1: CW (Clockwise), 2: CCW (Counterclockwise), 3: Maintained |
| Mounting / Shaft | 1: Std/Front, 2: Wide/Front, 4: Std/Reverse, 5: Wide/Reverse |
Example: EA080-11100 (Standard / CW / Front Shaft)
Standard Travel
Operational Data
EA080 Series
Snap-Lock® Technology
Standard-Travel Logic
Balanced 10° pre-trip travel designed for general industrial sensing and machine tools.
Heavy-Duty SPDT (Form Z)
Quick-make, quick-break rocker mechanism with mechanical locking for high reliability.
Superior Torque Rating
Engineered for 38 lb-in maximum torque at total travel for severe mechanical stress.
NEMA 1, 4, 13 Protection
Corrosion-resistant die-cast zinc housing sealed against water, oil, and dust.
Contact Ratings
| Voltage Range | AC (Amps) | DC (Amps) |
|---|---|---|
| 125 VAC | 20 A | 5 A |
| 250 VAC | 15 A | 1.5 A |
| 480 VAC | 10 A | --- |
| 600 VAC | 5 A | --- |
Dimensional Blueprint.
Die-Cast Zinc Alloy / NEMA 1, 4, 13 Construction
