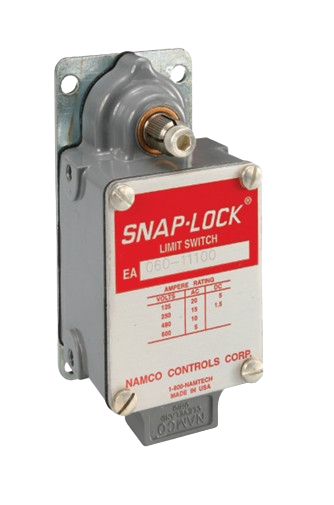

Snap-Lock® Short Travel Instantaneous Control.
Heavy-duty limit switch designed for high-speed response. Featuring Form Z contacts and a short 6.5° trip travel for precision industrial automation.
Milliseconds Matter
In Industrial Logic.
The EA060 series is engineered to eliminate switching delays and withstand the rigors of heavy manufacturing cycles.
Mechanical Slack
Standard limit switches with long travel delay response times in high-speed machinery.
Contact Bounce
Poor snap action leads to excessive arcing and pitting on sensitive SPDT contacts.
Vibration Failure
Harsh industrial vibrations can cause standard housings to crack or lose calibration.
Moisture Seepage
Exposure to cutting fluids and oils can short out non-NEMA rated components.
Mechanical Slack
Standard limit switches with long travel delay response times in high-speed machinery.
Contact Bounce
Poor snap action leads to excessive arcing and pitting on sensitive SPDT contacts.
Vibration Failure
Harsh industrial vibrations can cause standard housings to crack or lose calibration.
Moisture Seepage
Exposure to cutting fluids and oils can short out non-NEMA rated components.
Short Travel
Operational Data
EA060 Series
Short-Travel Precision
Minimal 6°30' trip travel ensures near-instantaneous feedback for high-speed logic.
SNAP-LOCK® Rocker Type
Quick-make, quick-break mechanism provides reliable SPDT contact separation.
Industrial Form Z
Single Pole, Double Throw configuration (1NO/1NC) for versatile control circuits.
Die-Cast Zinc Integrity
Rugged corrosion-resistant housing rated for NEMA 1, 4, and 13 environmental safety.
Operational Metrics
| Parameter | Specification |
|---|---|
| Trip Travel | 6°30' (Nominal) |
| Reset Travel | 4° (Nominal) |
| Total Travel | 35° (Maximum) |
| Operating Torque | 24 inch-lbs |
| Lever Adjustment | 7°30' Increments |
Compact Execution.
Short Travel SPDT & Rugged Zinc Enclosure
