Snap-Lock® Neutral Rugged Position Logic.
Heavy-duty limit switch designed for precise CW/CCW operation. Featuring silver alloy contacts and a die-cast zinc housing for severe industrial environments.
Precision Limits,
Where Ordinary Fails.
The EA040 series addresses critical industrial failures: contact welding, mechanical fatigue, and environmental ingress.
Contact Pitting
Arcing under high current loads destroys standard contacts in high-cycle operations.
Neutral Drift
Inaccurate return-to-center logic leads to misalignment in automated machinery.
Housing Stress
Vibration-heavy environments cause standard plastic housings to crack and fail.
Ingress Failure
Oil and coolant penetration leads to short circuits in metalworking zones.
Contact Pitting
Arcing under high current loads destroys standard contacts in high-cycle operations.
Neutral Drift
Inaccurate return-to-center logic leads to misalignment in automated machinery.
Housing Stress
Vibration-heavy environments cause standard plastic housings to crack and fail.
Ingress Failure
Oil and coolant penetration leads to short circuits in metalworking zones.
Neutral Position
Operational Data

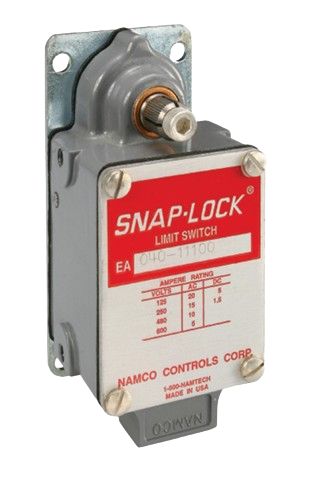

EA040-11100
Rocker-Type Snap-Lock
Quick-make, quick-break action quenches arcs and prevents contact welding.
7° Neutral Trip
Highly sensitive CW/CCW operation with a 6° reset angle for precise positioning.
Die-Cast Zinc Build
Built for mill-duty survival with an enclosure rated for NEMA 1, 4, and 13.
High Current Capacity
Rated for up to 20A at 125VAC, handling massive starting and stall currents.
Contact Ratings
| Voltage Range | Ampere Rating |
|---|---|
| 125 VAC | 20 A |
| 250 VAC | 15 A |
| 480 VAC | 10 A |
| 600 VAC | 5 A |
| 125 VDC | 5 A |
| 250 VDC | 1.5 A |
Modular Engineering.
Side Rotary Actuator & NEMA 1, 4, 13 Enclosure
