Advanced Power Quality Meters
For a New
Electric World
PowerLogic™ ION9000 and PM8000 series meters comply with the most stringent international standards and perform in all types of power networks.
Market challenges & applications
As our world becomes more digital and more electric, our facilities are challenged like never before. Power systems that were once state-of-the-art now struggle to deliver the reliability and efficiency needed today.
80%
PQ Disturbances inside the facility*
Source: pge.com
50%
Mission-critical outages due to PQ issues**
Source: Electric Light and Power Magazine
$150B
Annual cost of power quality issues*
Source: LPQI Survey
$130k
Potential lost revenue due to facility downtime*
Source: LPQI Survey
Continuous Power Quality Monitoring
Continuous Monitoring
High-speed monitoring of steady state and short duration disturbances.
Root Cause Analysis
Fast analysis in case of power outages to minimize downtime.
Compliance Reporting
Reporting to national and international standards defining allowable PQ limits.
Revenue Metering
Relevant where large amounts of energy (or money) are exchanged. Meters accurately calculate revenue owed to retailer or supplier.
High-Accuracy
Devices compliant with the latest international standards.
Anti-Tamper
Mechanisms and cybersecurity to protect energy exchange data.
Multi-Protocol
Multiple communication points and protocols for integration.
Extended Profile
Extended mission profile for longevity in the field.
Technical Insight
Smart power quality analysis and advanced system forensics.
Explore Advanced Metering
Delivering valuable and ongoing business outcomes.
True Reliability
No matter the circumstance, data needs to be accurate and reliable to make critical financial & operational decisions. PowerLogic advanced meters have superior accuracy for both energy and power quality monitoring.
Learn more about:
Power quality instruments (PQI) like the PowerLogic ION9000 series
Power quality and energy accuracy standards
IEC 62443 conformance

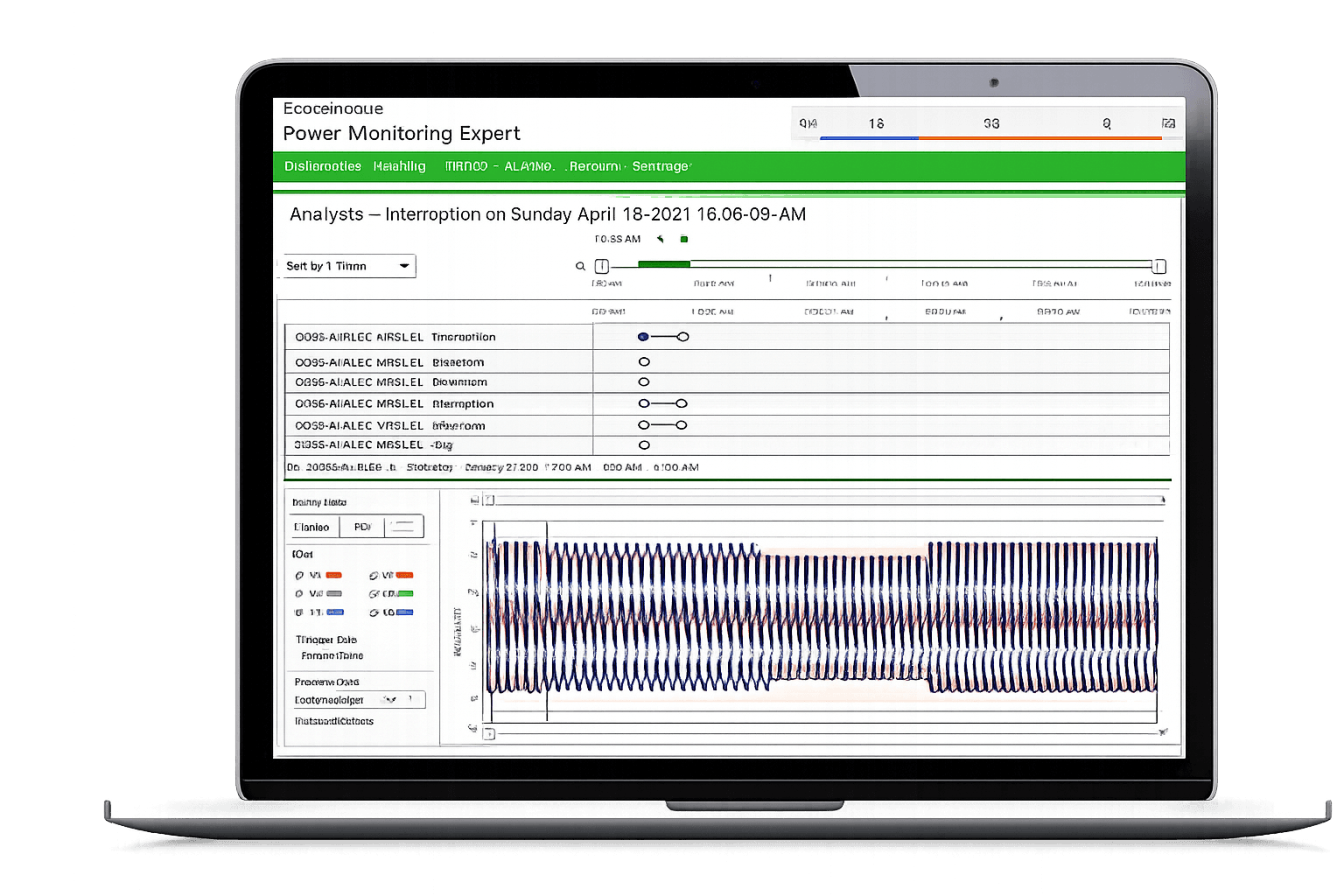

Tangible Results
Prevent critical asset downtime and increase electrical system reliability. Our advanced meters provide actionable and easy to understand power quality information that demystifies complex phenomena.
Learn more about:
EN50160 power quality standards
IEEE519 harmonic standards
Disturbance direction detection (DDD)
Wide Versatility
Tailor to your operations and business requirements. Customers need flexible and modular PQ meters that can easily adapt and evolve to changing business missions and a fast-changing electric world.
Learn more about:
ION programmability
Hardware modularity
Custom power management applications

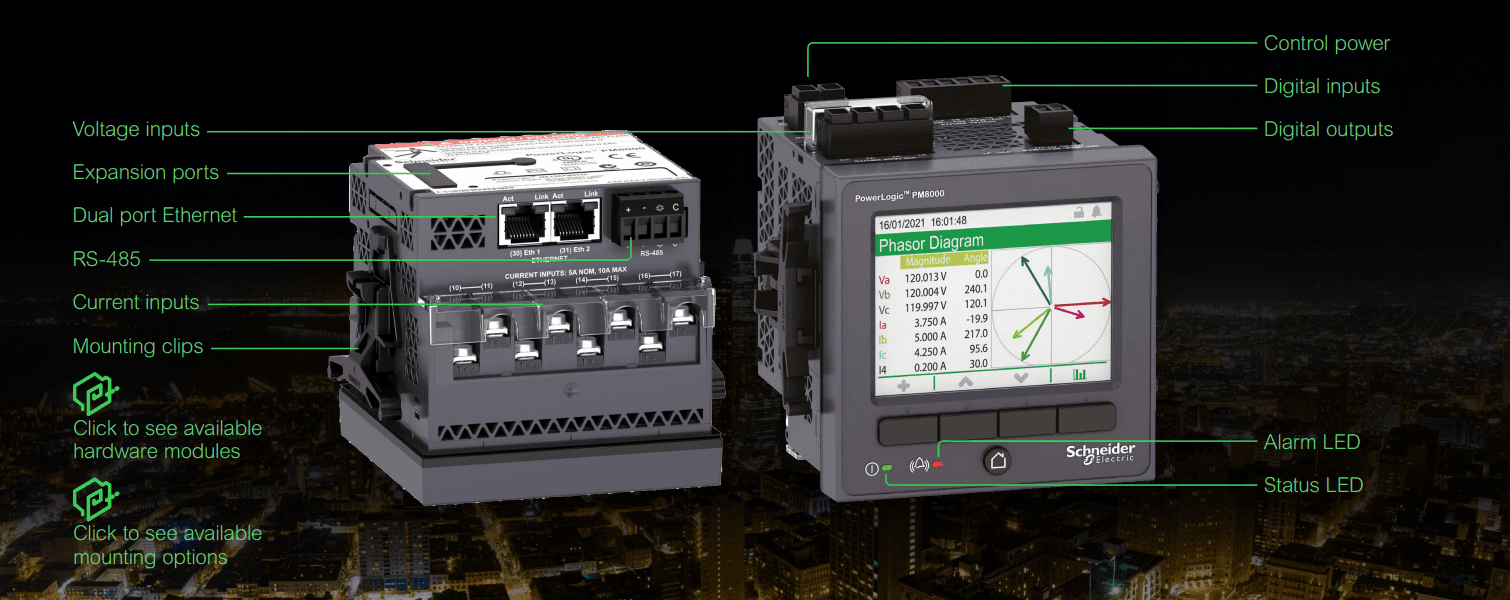

PowerLogic™ PM8000 series
Integrated Precision Hardware
Voltage inputs
Precision voltage measurement
Expansion ports
Available hardware modules
Dual port Ethernet
High speed network connectivity
Current inputs
Multiple current measurement paths
Digital I/O
Integrated control power inputs/outputs
Alarm & Status LEDs
Real-time diagnostic visual cues
RS-485
Standard serial communication
Mounting clips
Available mounting options

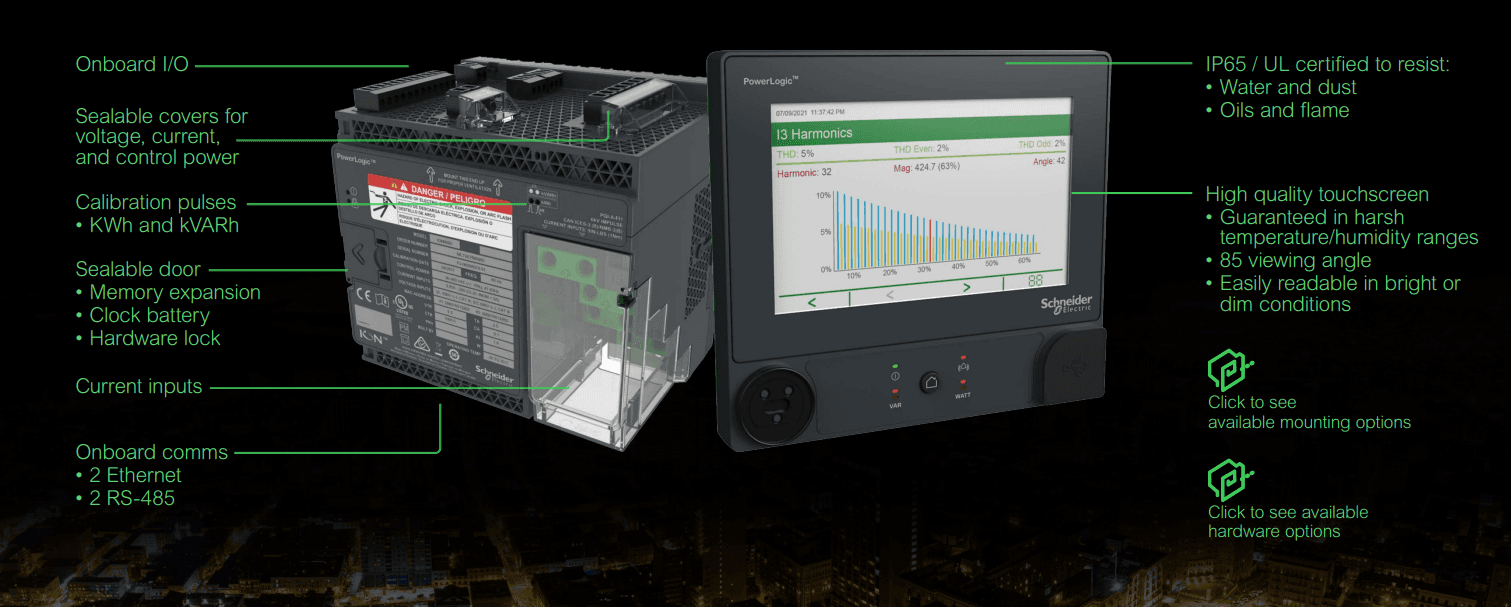

PowerLogic™ ION9000 series
Next-Generation High-End Power Meter
High Quality Touchscreen
- • Guaranteed in harsh temp/humidity
- • 85° viewing angle
- • Easily readable in bright/dim conditions
Certified Protection
- • IP65 / UL certified resistance
- • Water and dust resistant
- • Oils and flame resistant
Sealable Covers
For voltage, current, control power
Calibration Pulses
KWh and kVARh
Onboard Comms
2 Ethernet, 2 RS-485
Current Inputs
Precision sensing
Sealable Door
Expansion, Clock, Hardware Lock
Onboard I/O
Integrated control
Technical Specifications
Full comparison across the ION9000 and PM8000 lineup, compliant with IEC 61000-4-30 standards.
| Features | PM8000 Series | ION9000 Series |
|---|---|---|
| Energy accuracy class | 0.2S | 0.1S |
| Sampling rate | 256 - 512 samples/cycle | 1024 samples/cycle - 10 MHz |
| Logging memory | 512 MB | 2 GB |
| Communication ports | Dual Ethernet + 1 x RS485 | Dual Ethernet + 2 x RS485 + USB* + optical |
| Protocols | Modbus RTU/TCP, ION, DNP3, IEC 61850 | Modbus RTU/TCP, ION, DNP3, IEC 61850, DLMS |
| Time synchronization | PTP, GPS, IRIG-B, NTP/SNTP | PTP, GPS, IRIG-B, NTP/SNTP |
| Onboard I/O | 3DI / 1DO | 8DI / 4DO / 2RO |
| PQ Measurements | THD, Harmonics (63), Sag/Swell, DDD | THD, Harmonics (63), Sag/Swell, DDD, Flicker, Transients |
| PQ Compliance | IEC 61000-4-30 Class S/A | IEC 61000-4-30 Class A |
Perfect for Your Business
Choose a segment to see what advanced metering can do for your facility.
Critical Buildings
Includes: Data centers, hospitals, universities, large commercial buildings and campuses.
"On average, a one-hour power loss event costs a data center $1 million and a compromised reputation."
Precision accuracy, the ability to quickly locate disturbances, predict maintenance needs, and aid in monitoring ongoing operations like battery health and runtime variations.
Digital & Field Services
Reduce maintenance costs and maximize system uptime with real-time data on infrastructure performance. Get actionable predictive maintenance info.
Digital Services
- Optimize energy efficiency and reduce energy-related costs
- Reduce downtime from network issues or equipment failure
- Improve predictive maintenance and reduce reactive issues
Field Services
Site Safety
Reduce risks during operations, maximize site availability, and reduce insurance cost.
New Installations
Certify reliability and safety of equipment. Single point of contact during on-site work.
Infrastructure Maintenance
Fast replacement of obsolete components with newer equipment. Enhance cybersecurity and safety.
EcoStruxure Innovation
at every level
Schneider Electrics IoT-enabled, plug-and-play, open interoperable architecture that unites Power and Building Management with connected devices, edge control and digital services.
Safe
Helps ensure safe delivery and operation of clean, reliable power.
Available
Enhance electrical asset management and avoid downtime.
Efficient
Reduce energy usage and costs, improve sustainability.
Cybersecure
Helps ensure resilience to cyber threats that impact operations.
A network of certified innovators
Partners that provide cutting-edge solutions. Trained and certified by Schneider Electric, EcoXperts provide best-in-class services and digital solutions.
